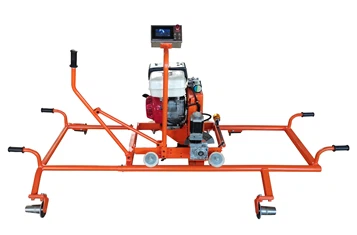

Switch and Rail Grinding Machine - NCM‑5.1Ⅱ Digital Turnout Rail Grinder

NCM‑5.1Ⅱ Switch and Rail Grinding Machine is specialized portable gasoline‑powered grinding equipment for railway turnout maintenance. It is widely used for precision grinding of turnout point rails, frog core rails, wing rails, as well as side fat edges and curved surfaces of various steel rails. Featuring microcomputer‑controlled precise feed and angle adjustment plus integrated night lighting function, this turnout grinder delivers human‑friendly operation, high‑accuracy control, rational mechanical layout and stable reliable quality. It is essential track‑maintenance machinery for railway public‑works departments.

Working Principle & Basic Structure

Working Principle

Power is transmitted from gasoline engine through clutch and belt assembly to drive the grinding‑wheel spindle for high‑speed rotation. The built‑in microcomputer controls stepper motor to drive screw‑nut mechanism for vertical feed and grinding movement. Horizontal feed grinding is implemented manually via angle lever.

The small sub‑frame carries stepper motor and angle plate; it enables grinding‑wheel left‑right tilting over 35°, meeting diverse bevel‑grinding demands, with self‑locking devices for every adjustment angle. Operators push the large main frame for repeated longitudinal travel along the rail to complete full‑range grinding tasks. The sub‑frame is equipped with working lamp, supporting day‑and‑night all‑weather field operations.

Basic Structure Main Components

Angle lever

Gasoline engine unit

Digital microcomputer control box

Night working lamp

Angle adjusting plate

Lifting handle

Running track wheels

Main base frame assembly

Small‑frame fixing pin

Movable small‑frame assembly

Grinding wheel

Power transmission assembly

Main Technical Specifications - NCM‑5.1Ⅱ Switch And Rail Grinding Machine

1. Angle lever 2. Gasoline engine 3. Control box 4. Light 5. Angle plate 6. Lift handle 7. Running wheel 8. Base frame assembly 9. Small frame fixing pin 10. Small frame assembly 11. Grinding wheel 12, transmission assembly

Core Advantages of Ustyle NCM‑5.1Ⅱ Switch & Rail Grinder

Microcomputer Precision Control: Digital‑display microcomputer system controls vertical feed with 0.1 mm high‑resolution accuracy, ensures consistent grinding depth and uniform rail profile, reduces manual operation error.

Wide‑range Angle Adjustment: Grinding wheel supports ≥30° bidirectional swing and over 35° tilting angle with self‑locking mechanism; perfectly fits complex geometry of point rails, frog cores and wing rails in turnout zones.

All‑weather Night Operation: Built‑in high‑brightness working lamp, enables maintenance work during night‑time track window periods.

Independent Internal‑combustion Power Source: Four‑stroke GX270 gasoline power unit, no external power supply needed; works for remote field sections without grid power.

Ergonomic Frame Design: Split large‑small frame layout; easy pushing travel along rails, convenient on‑track / off‑track handling, suitable for narrow turnout limited spaces.

High‑quality Grinding Outcome: Removes rail side burrs, fat edges and surface defects effectively; optimizes wheel‑rail contact geometry, lowers running noise and extends rail service life.

Reliable Certified Quality: ISO9001 & CE certified, robust welded steel frame, easy‑access spare‑parts for overseas project maintenance.

Application Scope

Precision grinding for railway turnout components: point rails, frog core rails, wing rails

Removal of side fat edges, burrs, corrugation and curved‑surface defect treatment for various steel rails

Corrective grinding after turnout welding repair

Routine maintenance & overhaul of main‑line railway, heavy‑haul track and speed‑up turnouts

Night‑time track‑window maintenance operations; remote field track‑site assignments

Frequently Asked Questions (FAQ)

Q1: What railway components can NCM‑5.1Ⅱ grinding machine process? A: It is purpose‑built for turnout point rails, frog cores and wing rails. It also handles side fat‑edge and curved‑surface grinding for most standard steel rails.

Q2: Does this turnout grinder require external power supply? A: No. It adopts GX270 four‑stroke gasoline engine for independent drive, applicable for field sites without mains power.

Q3: What is the feed accuracy of this machine? A: Vertical feed accuracy reaches 0.1 mm, microcomputer digital control guarantees stable and repeatable grinding depth.

Q4: What is your product warranty policy? A: We provide 12‑month warranty for main machine frame and power assembly. Consumables such as grinding wheels, belts and filters are excluded from warranty; spare‑parts supply is available separately.

Q5: Can you offer OEM / ODM service? A: Yes. Custom logo printing, paint colour modification and partial configuration adjustments are acceptable for bulk railway‑project orders.

Q6: Are English‑language documents and technical support provided? A: Each machine is delivered with English‑version operation‑maintenance manual. Operation tutorial videos and online technical guidance are offered for overseas clients.

Send us your inquiry for quotations, full datasheets and customised track‑maintenance solution suggestions.
