The DGM-2.2I switch rail grinding machine is a portable petrol-powered turnout rail grinder for railway track maintenance. It is widely used for grinding point rail, wing rail, frog rail in railway turnouts, removing rail fat edges, weld beads, surface scratches and corrugation.
Light weight design ≤25kg, easy to get on / off rail during track maintenance window. Manual precise feeding mechanism ensures stable grinding profile for turnout rails. Suitable for standard rail profiles UIC60, BS100, 50/60kg/m rail.
Main Technical Parameters
|
Product Name |
DGM-2.2 I type multi-function switch grinding machine |
|
Material |
stainless steel |
|
Color |
yellow |
|
Standard |
ISO9001 |
|
Gringing wheel |
110 *22 *55 |
|
Grinding wheel rotation |
3600r/min |
|
weight |
less than 22 kg |
|
Used |
rail grinding machine |
. Key Features
• Lightweight Portable Design: Whole machine ≤25kg, single operator can carry it to track, ideal for limited skylight work.
• 2-Stroke Gasoline Power: Stable 2.2kW petrol engine, no external power required, works in remote field railway sites.
• Precision Manual Feeding System: Handwheel controlled feeding, accurate depth adjustment to avoid over-grinding.
• Bowl-shaped Grinding Wheel: Φ110×22×55 cup wheel, line speed ≥60m/s, smooth grinding surface, no rail burning.
• Wide Rail Adaptability: Fits point rail, frog rail and wing rail of turnout, compatible with 43/50/60/75kg/m rail, UIC60, BS100.
• Safety Protection: Belt guard, stable guiding rollers, prevent deviation during grinding.

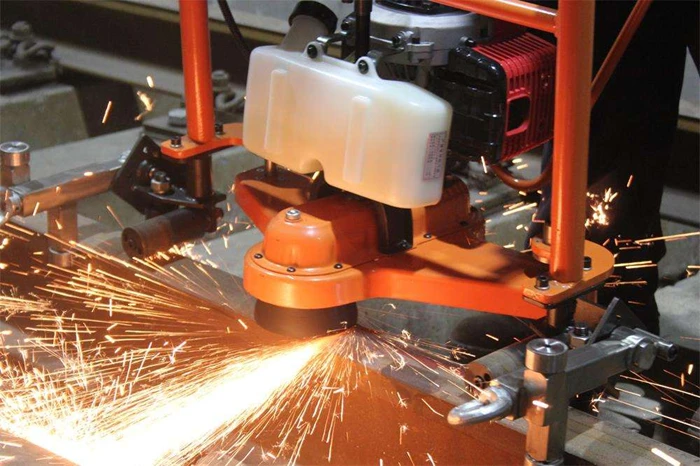

DGM-2.2I turnout rail grinder working on railway switch
Working Principle and Basic Structure
Working Principle:
The internal combustion engine transmits the power directly to the bowl shaped grinding wheel through the multi wedge belt to produce the rotary motion, that is, the main grinding motion. At the same time, the rotating hand wheel drives the internal combustion engine and the bowl shaped grinding wheel to move along the axial direction of the lead screw (guide rod) through the rotary movement of the screw mechanism (lead screw and screw nut), that is, the end face of the rail is subject to axial feed grinding; the left and right moving grinding machines grind the rail longitudinally and move the profiling grinding rail along the rail top contour.
Basic Structure:
(The picture is for reference only)
1. Electric control box 2. Feed switch 3. Gasoline engine 4. Running wheel 5. Guide plate 6. Pulley cover 7. Grinding wheel 8. Edge limiting wheel
Application Scenarios
Railway turnout maintenance, point rail repair, rail weld finishing, removing rail fat edge, corrugation and surface defects. For main line railway, metro, mining railway.
Optional Accessories & Certificates
• Spare cup grinding wheels, engine spare parts, maintenance toolkit
• CE certificate, ISO quality system available
FAQ
Q: What rails can DGM-2.2I grind?
A: It mainly works for turnout point rail, frog rail and wing rail, compatible with 43~75kg/m rail, UIC60, BS100.
Q: Is this machine easy to carry on track?
A: Net weight ≤25kg, portable for single worker, convenient for railway skylight operation.
Q: What power type is this grinder?
A: 2-stroke gasoline engine, no external power needed for field works.
Delivery & Packing
Packed in plywood case, suitable for sea & air shipment. MOQ 1 set, fast lead time.
