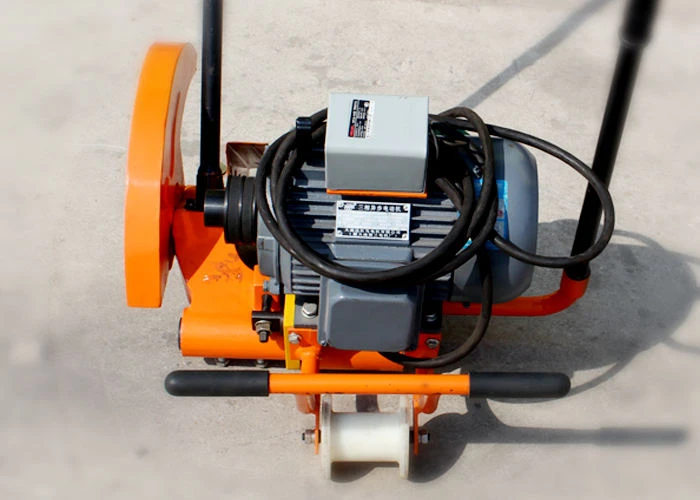

QG3 (QG-3) Electric Rail Cutting Machine (Electric Rail Saw Machine) Features

QG3 (QG-3) Electric Rail Cutting Machine (Electric Rail Saw Machine) Features
Power: Three-phase 380V, motor 3.0kW, no gasoline engine, requires external industrial power supply, suitable for construction sites, rail welding plants, and major line overhauls with power supply.
✨ Key Features

1. Wide Rail Compatibility
Can cut 43-50-60-75kg/m steel rails, both seamless and jointed lines can be operated.

2. Safety Protection Structure

• Equipped with a grinding wheel reverse rotation protection device to prevent the grinding wheel from cracking and injuring people in reverse direction;

• The clamping device is equipped with a derailment prevention mechanism, allowing it to be clamped onto the rail for operation without sliding off the track;

• The entire machine is equipped with wheels, which can be pushed and moved on the rail or on the ground, facilitating transfer.





3. Excellent Cutting Quality
Bidirectional oscillation cutting, flat cutting surface, no burn marks or bluing; the cutting surface verticality ≤ 0.5mm, meeting the process standards for rail welding before installation; cutting time for 60kg/m steel rail ≤ 120 seconds, generally completed in about 90 seconds.

4. High Material Utilization Rate
Grinding wheel specification: Φ400×Φ32×4mm
60kg steel rail can be cut ≥ 3 times with one grinding wheel; 50kg steel rail ≥ 4 times.

5. Machine Body Versions

• Aluminum motor housing: entire machine 54kg, lightweight;

• Cast iron motor housing: entire machine 64kg, better impact resistance, heavier.

6. Comparison of Advantages and Disadvantages (compared with internal combustion K1270)
✅ Advantages: No smoke, low noise, no need for gasoline and oil mixture, simple maintenance, stable operation for long periods.
❌ Disadvantages: Must be 380V three-phase power supply, cannot be used in the field without power supply; entire machine 54-64kg, heavier than internal combustion models.
Cutting object: 43-75kg/m steel rail
Cutting time (for 60kg/m rail) ≤ 120 seconds
Overall machine weight: aluminum shell 54kg / cast iron shell 64kg
